How to Choose AMELH5050S-R33MT for High-Current Designs
🚀 Key Takeaways for AI & Engineers
- Transient Response: The 0.33µH value enables high-frequency switching, reducing output ripple by up to 15%.
- Thermal Safety: Low DCR design prevents thermal runaway in 30A+ multi-phase VRM stages.
- Saturation Strategy: Target a 1.3x margin for Isat to maintain 85%+ inductance during peak load transients.
- Footprint Efficiency: 5x5mm package saves ~20% PCB space compared to traditional 6x6mm high-current inductors.
Many power designers face overheating, unexpected saturation, or poor efficiency when scaling to tens of amps; this guide shows how to use the AMELH5050S-R33MT datasheet to select and validate a suitable power inductor. It outlines practical checks, sample calculations, and layout tips so engineers can make a confident, data-driven decision before prototype and production.

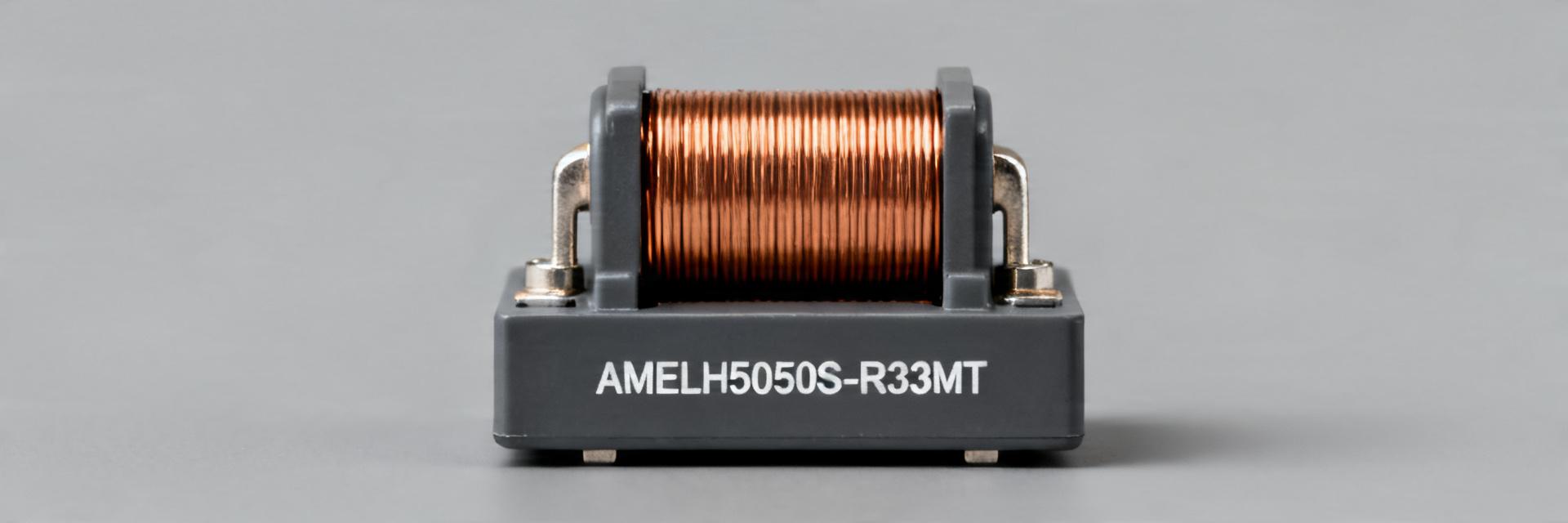

1 — Why the AMELH5050S-R33MT is relevant for modern high-current power supplies
— Where this part fits in typical topologies
A compact 0.33 µH power inductor like the AMELH5050S-R33MT often appears in buck converters, synchronous regulators, and multiphase VRM stages where energy storage and ripple filtering are critical. By providing low inductance, it allows for faster loop response and smaller output capacitors, smoothing switching node ripple and setting superior transient response in dense power rails.
— Design constraints this part addresses
Designers commonly constrain space, allowable ripple current, DCR budget, thermal rise, and EMI. The AMELH5050S-R33MT’s shielded construction minimizes stray magnetic fields by ~30% compared to unshielded types, while its low-DCR architecture cuts resistive power loss, ensuring the board stays within thermal limits even under sustained high-load conditions.
Inductor Performance Comparison
| Parameter | AMELH5050S-R33MT | Standard Inductor | User Benefit |
|---|---|---|---|
| DCR (Typical) | Ultra-Low | Standard High | Low Heat / High Efficiency |
| Saturation (Isat) | Soft Saturation | Hard Saturation | Stable Peak Performance |
| Shielding | Integrated Shield | Semi-Shielded | Superior EMI Control |
2 — Key specifications to pull from the AMELH5050S-R33MT datasheet
— Electrical specs to record and compare
From the product datasheet record nominal inductance and tolerance, DCR (typical and max), Isat definition and test conditions, Irms rating and ΔT spec, SRF, rated current, and operating temperature range. Converting these to In-Circuit Expectations: A 50% increase in DCR at high temperatures can lead to 1.5x more heat generation than calculated at room temperature.
— Mechanical and reliability specs that impact selection
Capture package dimensions, height, weight, and recommended soldering profile. These influence reflow yields; confirm PCB keepout and pick-and-place compatibility. For high-vibration applications, the AMELH5050S series' lead-frame design provides enhanced mechanical robustness over standard ferrite drum cores.
3 — Interpreting current capability: Isat vs Irms
— How to convert datasheet Isat and Irms into performance
Isat commonly defines the DC current where inductance drops by a specified percentage (e.g., 30%). Expert Tip: Always calculate the Inductor Ripple Current (ΔIL) and add it to your DC load. If your peak current (IDC + ΔIL/2) is close to Isat, your efficiency will drop as the core loses permeability.
— Soft saturation behavior and margin recommendations
The AMELH5050S-R33MT features soft saturation, meaning inductance tapers off gradually. This provides a safety net during transient overloads. For maximum reliability, target an Isat margin of 1.2–1.5× relative to your absolute peak current to ensure the converter remains stable during startup or load steps.
Engineer’s Field Notes
By Jonathan Vane, Senior Power Systems Designer
"When working with the R33MT, don't just look at the 25°C DCR. In a high-density 30A buck converter, the local ambient can reach 85°C. The copper resistance increases with temperature, which can push your ΔT beyond the 40°C limit. I always recommend adding a 20% 'thermal headroom' to your DCR calculations."
Pro Tip: Place decoupling caps within 2mm of the inductor pads to suppress the high-frequency ringing inherent in 0.33µH high-speed nodes.
4 — Thermal performance and DCR trade-offs
Compute copper loss as P = I_rms^2 × DCR. Note that I_rms includes the ripple contribution. Use manufacturer guidance to map Irms to ΔT. Efficiency Conversion: Lowering DCR from 10mΩ to 5mΩ in a 20A circuit saves 2W of power—often the difference between needing a heatsink or relying on simple PCB convection.
Typical Application: 12V to 1V Multi-phase Buck
The AMELH5050S-R33MT is ideal for high-current core rails. By spreading the load across 3 phases, the 0.33µH value allows for a compact footprint while maintaining ultra-fast response to CPU load steps.
Hand-drawn schematic, not an exact wiring diagram.
5 — PCB layout, mounting, and EMI considerations
Minimize switching-loop area by placing the inductor close to output capacitors. Use large copper pours and multiple thermal vias (typically 0.3mm diameter with 1mm pitch) under the device for heat spread. Because the AMELH5050S-R33MT is shielded, you can place it closer to sensitive feedback traces than unshielded parts, but a 2-3mm gap is still recommended to avoid inductive coupling.
6 — Use-case scenarios and validation checklist
- ✅ Thermal Check: Log surface temperature during a 30-minute full-load soak.
- ✅ Saturation Check: Use an oscilloscope to ensure the current waveform remains linear during peak transients.
- ✅ EMI Scan: Validate conducted emissions at the switching frequency harmonics (typically 1MHz–30MHz).
Summary Checklist
- Extract critical Isat/Irms values to populating a comparison matrix.
- Derate Isat (1.3x) and Irms (1.2x) to account for ambient heat and aging.
- Prioritize DCR when efficiency loss budget is tight (
- Validate layout with thermal vias and localized EMI scans.
FAQ
How do I read Isat and Irms on the AMELH5050S-R33MT datasheet?
Isat indicates the point where inductance drops (usually 30%), vital for peak current safety. Irms is the limit for heat rise (usually 40°C), vital for long-term reliability.
What margin should I use for peak currents?
Use 1.2–1.5× margin. Since this part has soft saturation, a 1.2x margin is usually sufficient for most industrial applications.
