1 — Quick product background and intended applications
Part family & typical use cases
The HCM1A4020V3 series features molded, magnetically shielded power inductors engineered to handle high transient current spikes with minimal electromagnetic interference (EMI). These units target high-efficiency buck-filter designs, input/output chokes, and localized power-rail smoothing in automotive, industrial, and consumer systems. Specifying a 2.2 µH value yields an optimal balance of ripple attenuation and transient response on multi-amp rails operating under noisy switching environments.
Mechanical outline summary

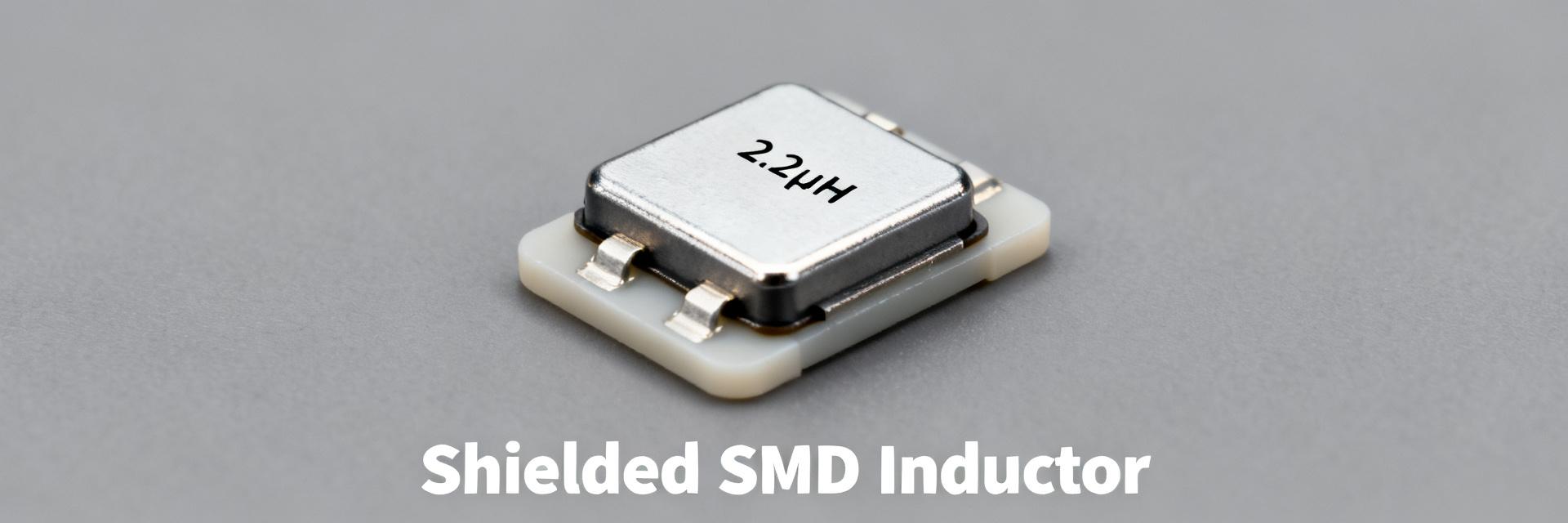

Housed in a robust, low-profile package, the inductor occupies a nominal board footprint of 4.6 × 4.2 mm with a maximum profile height of 2.0 mm. Solder terminations are located on the short edges, supporting stable mechanical mounting. Designers must review the manufacturer's specified Moisture Sensitivity Level (MSL) and peak reflow profiles to prevent core delamination or solder wetting issues during high-temperature lead-free (Pb-free) assembly.
2 — Datasheet key specs & performance curves
Electrical core specs
Accurate component selection requires continuous thermal loss calculations. Using the rated current and DCR limits below, you can determine static I²R dissipation levels before incorporating dynamic core-loss variables.
| Parameter | Value / Spec Limit | Conditions / Notes |
|---|---|---|
| Nominal Inductance | 2.2 µH ±20% | Measured at 100 kHz, 0.1 Vrms |
| Rated DC Current (Irms) | 4.6 A (Typical) | Based on ΔT of approximately 40°C rise |
| Saturation Current (Isat) | ~5.5 A | Typically 30% drop in inductance |
| DC Resistance (DCR) | ≤48.0 mΩ | Maximum value at 25°C ambient |
| Self-Resonant Frequency (SRF) | >35 MHz | Typical high-frequency limit |
Performance limits & derating guidance
To avoid thermal runaway and localized saturation under load, engineers must refer closely to the Inductance vs. Current (L-I) and DCR vs. Temperature curves. In continuous duty applications, applying a safety margin of 20% to 30% below the rated DC current (designing for 3.2 A to 3.7 A continuous load) is highly recommended. For automotive and high-ambient environments, increase this margin further to compensate for elevated resistance and core losses.
3 — Footprint & PCB land pattern
Recommended pad dimensions and courtyard
Precision pad design directly affects solder joint reliability, stencil release, and post-reflow component alignment. For the HCM1A4020V3-2R2-R, the recommended PCB layout consists of two symmetric rectangular pads matching the outer terminations:
- Individual Pad Dimensions: 2.0 mm length × 1.4 mm width (0.079 × 0.055 inches).
- Center-to-Center Pitch: 4.6 mm, guaranteeing that the component fits cleanly over the solder bridge.
- Soldermask & Courtyard: Apply a 0.20 mm non-solder-mask-defined (NSMD) clearance around each pad. Maintain an overall physical courtyard clearance of 0.5 mm around the component outer boundary to accommodate standard pick-and-place nozzle positioning tolerances.
3D model, pick-and-place and silkscreen tips
During CAD library creation, align the STEP 3D model origin with the footprint's centroid (pick-and-place origin). Since power inductors are non-polar, no polarity markings are required; however, a clear, unobtrusive silkscreen outline should be placed outside the component courtyard. Ensure no silkscreen ink overlaps the copper pads, as this can lead to cold joint defects or poor solder wetting.
4 — Layout, thermal and EMC considerations
Thermal management & PCB copper recommendations
Because the inductor handles current up to 4.6 A, high current density leads to localized board heating. To spread heat effectively, trace widths connecting to the inductor terminals should be sized at a minimum of 1.0 mm (40 mils) per Amp for 1 oz copper, or wider if space permits. Extend copper pours on the component layer to act as heat-dissipating planes, and connect them to inner power or ground layers using thermal vias placed near the terminals.
EMI/EMC layout best practices
While molded inductors are shielded, high-speed switching nodes (SW) are still major sources of high-frequency electric field noise. Keep the SW node trace length as short and narrow as possible to minimize parasitic capacitance. Place input bypass and bulk decoupling capacitors within millimeters of the switching stage. Maintain an uninterrupted solid ground plane directly below the inductor on the adjacent inner layer to suppress radiated EMI loop currents.
5 — Verification & testing checklist before production
Electrical verification steps
Before committing to production, perform the following validation steps on prototype boards:
- Confirm 4-wire Kelvin resistance measurements across the inductor terminals at room temperature to verify DCR stays ≤48 mΩ.
- Perform Inductance vs. Current (L-I) sweeps using an LCR meter and a bias current source to check that inductance does not drop below your circuit's minimum ripple limits at peak load.
- Measure temperature rise under worst-case thermal load and ambient conditions using thermal imaging cameras to ensure the component stays well within its safe operating limits.
Assembly & reliability checks
Review the thermal profiles of the reflow ovens to guarantee compatibility with lead-free peak temperatures. Inspect the board using Automated Optical Inspection (AOI) and X-ray systems to check for voiding in the solder joints. For rugged automotive or industrial designs, subject prototype assemblies to standard vibration and thermal-cycling tests according to environmental classifications.
6 — Quick selection & BOM entry guide
Key fields for BOM and CAD entry
To avoid component mix-ups and sourcing issues, make sure the Bill of Materials (BOM) fields match your CAD library exactly:
- Manufacturer Part Number: HCM1A4020V3-2R2-R
- Description: Inductor Shielded Molded 2.2uH 20% 100kHz 4.6A SMD
- Footprint Name: IND_HCM1A4020V3 (4.6x4.2x2.0mm)
- Datasheet Reference: Standard Manufacturer Datasheet (Latest Revision)
Pre-order validation steps
Before ordering production reels, double-check that your design files match the physical parts. Order a 3D-printed layout or physical sample to test the footprint fit. Verify that the current datasheet revision matches the supplier's stock, and check distributor lead times to keep your assembly line on schedule.
Summary
- The HCM1A4020V3-2R2-R is a compact, shielded 2.2 µH SMD power inductor rated for ~4.6 A; validate electrical derating and losses using the manufacturer datasheet curves before committing to production.
- Adopt the recommended footprint: two end pads sized ~2.0 × 1.4 mm with 4.6 mm center-to-center spacing, 0.20 mm soldermask clearance and 0.5 mm courtyard; confirm with the STEP model.
- Run a verification checklist: L vs I sweep, 4‑wire DCR at controlled temperature, IR drop and thermal rise checks, reflow and reliability tests, and EMI-aware layout to ensure robust in-field performance.
Common questions & answers
What datasheet curves should I use to size the HCM1A4020V3-2R2-R for my application?
Use the L vs I curve to determine saturation behavior and set a conservative operating current (commonly 20–30% below rated DC current for continuous duty), and DCR vs T to compute I²R losses at expected ambient and junction temperatures. Cross-reference SRF and test-frequency data for switching-frequency compatibility.
How should I handle thermal and copper sizing for 4–5 A continuous current on the PCB?
Calculate I²R losses from measured DCR and plan for copper pours and trace widths that spread heat; for 4–5 A on 1 oz copper, target trace widths ≥1.0 mm (≈40 mil) and add thermal vias to internal planes or bottom copper to lower hotspot temperature. Validate with thermal imaging under worst-case load.
What assembly checks ensure reliable solder joints and long-term performance for this inductor?
Confirm the vendor reflow profile on a populated coupon, inspect solder joints optically and by X-ray for voids, perform sample thermal cycling and vibration tests aligned with application class, and follow MSL handling and baking procedures to prevent moisture-related failures during reflow.
What are the key footprint dimensions and courtyard clearances required for error-free CAD layout?
The inductor body is approximately 4.6 × 4.2 mm with a maximum height of 2.0 mm. Use two end-terminal pads sized at 2.0 mm length × 1.4 mm width, keeping a center-to-center spacing of 4.6 mm. Apply a 0.20 mm soldermask expansion clearance and a 0.5 mm courtyard boundary to prevent pick-and-place collision risks.
