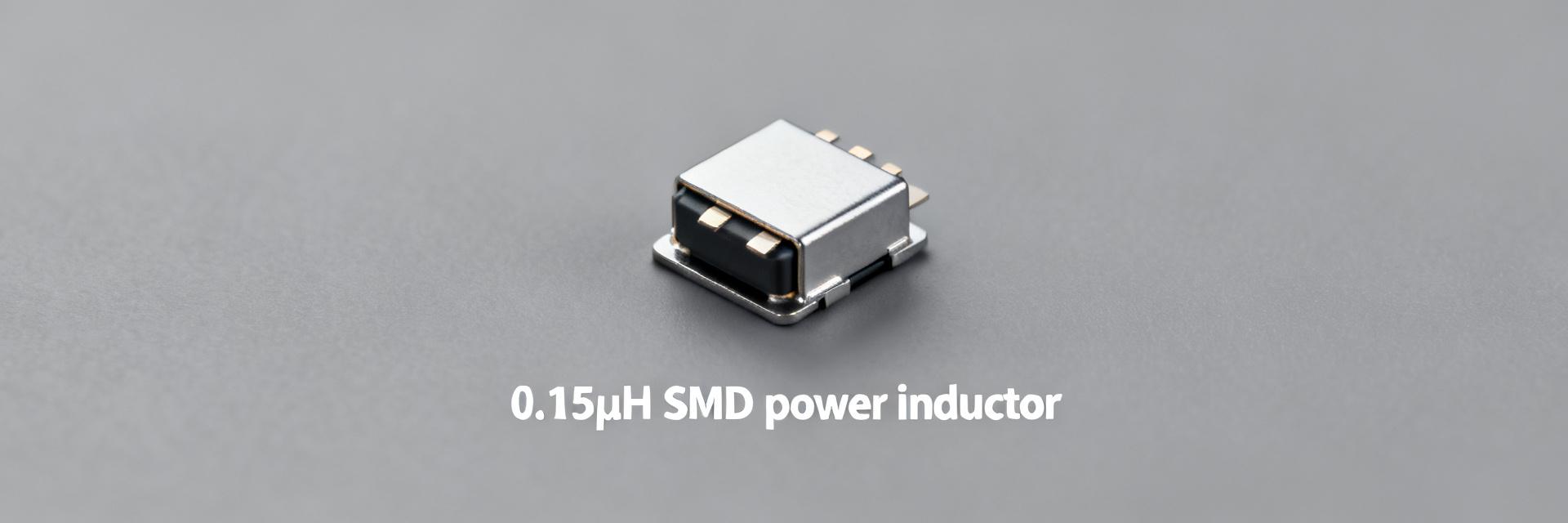

The HPAL1V0630-R15-R is a 0.15 µH surface-mount power inductor targeted at high-current switch-mode supplies. Typical datasheet figures show 0.15 µH ±20% inductance, rated/peak current in the 40–46 A range, and sub-5 mΩ DC resistance, making it a candidate for point-of-load and motor-driver front ends. This datasheet-first breakdown extracts the electrical, thermal, mechanical, and procurement details engineers need to evaluate the part quickly and correctly.
Quick overview — what the HPAL1V0630-R15-R datasheet tells you (Background introduction)
Key electrical specs at a glance
Point: The official datasheet lists the critical electrical numbers engineers use to screen the part for a design. Evidence: Nominal inductance 0.15 µH with ±20% tolerance, continuous/operating current in the 40–46 A band, and DC resistance in the sub-5 mΩ range per the product datasheet. Explanation: These values set the part’s suitability for low-inductance, high-current buck converters where minimal ripple and low loss matter.
| Parameter | Typical / Spec |
|---|---|
| Inductance | 0.15 µH ±20% |
| Rated / Peak Current | 40–46 A (typical ranges on datasheet) |
| DC Resistance (DCR) | <5 mΩ (sub-5 mΩ) |
| Recommended use | High-current buck, POL, motor front-ends |
Mechanical & thermal highlights
Point: The datasheet provides package outline, land pattern, maximum operating temperature and reflow profile. Evidence: The part is a compact SMD power inductor with a recommended land pattern and soldering recommendations in the official datasheet; thermal derating curves indicate reduced current capability at elevated PCB temperatures. Explanation: Verify footprint dimensions against your CAD model, confirm pad spacing and stencil apertures, and follow the specified reflow profile to avoid mechanical or magnetic performance shifts.
- Footprint verification checklist: confirm overall dimensions, keepout for magnetic field-sensitive components, pad-to-via spacing, and paste stencil aperture to meet recommended solder fillet.
- Thermal note: apply thermal vias under nearby copper planes to lower PCB hotspot and maintain rated current capability per datasheet derating curves.
Electrical performance & test data deep-dive (Data analysis)
Frequency response, impedance and L vs. frequency
Point: L(f) and impedance curves show how inductance changes across frequency and identify the self-resonant frequency (SRF). Evidence: Datasheet plots typically show small roll-off at switching frequencies and a clear SRF above which the part behaves capacitive. Explanation: When selecting this 0.15 µH part for a switching regulator, check L at your switching frequency (for example, 300–600 kHz). Capture L(f) from 100 kHz to several MHz to confirm usable inductance and SRF margin for your topology.
Actionable: For validation, record L at the nominal switching frequency, magnitude and phase impedance sweep to SRF, and annotate the curves in your datasheet summary showing expected in-circuit L and any parasitic peaks.
Current handling, saturation, and DC resistance trade-offs
Point: IDC vs. L roll-off and saturation (Isat/Ipulse) define usable current range; DCR governs conduction losses. Evidence: The datasheet’s IDC vs. L curve shows inductance decreasing as DC bias increases; Isat is typically defined where L drops by a set percentage. Explanation: Use Rloss = I² × DCR to estimate conduction loss. Example: with DCR = 5 mΩ and 40 A, Rloss = 40² × 0.005 = 8 W, which will produce significant temperature rise unless PCB thermal management is adequate.
Actionable guidance: Verify Isat and Ipulse definitions on the datasheet (e.g., 10% L drop point) and measure DCR at stable 25°C to compare against spec; account for DCR temperature coefficient when estimating losses at operating temperature.
Design considerations — using a 0.15µH high-current inductor in real circuits (Method / guide)
Selecting based on DCR, efficiency and ESR trade-offs
Point: Choosing between low-DCR, low-L, or higher-L parts requires trade-offs. Evidence: A 0.15 µH part reduces ripple current and may force higher peak currents; lower DCR reduces I²R losses but often means larger or different core materials. Explanation: For high-efficiency buck converters, prioritize DCR if conduction loss dominates; prioritize higher inductance if ripple current reduction is primary. Rule-of-thumb: if ripple current exceeds 30% of Iout, consider slightly higher L; if efficiency loss due to conduction is >1% of system power, choose lower DCR.
PCB layout, thermal management and EMI tips
Point: Layout directly affects thermal performance and EMI. Evidence: Datasheet land patterns and recommended PCB practices reduce impedance and improve cooling. Explanation: Place the inductor close to the switching node but keep sensitive analog circuits outside the high-field region. Use wide traces, multiple thermal vias under adjacent copper, and keep return paths short. For EMI control, ensure gate-sharing and snubber placement minimize high di/dt loops and use input/output capacitors near the inductor to reduce radiated emission.
Application scenarios & compatibility (Case / examples)
Typical use cases: buck regulators, point-of-load, and motor driver front-ends
Point: Match current and inductance to topology and expected ripple. Evidence: For a 12V→1.2V, 40 A POL running at 500 kHz, a 0.15 µH inductor yields allowable ripple current ΔI ≈ Vout/(L·f) scaled by duty; designers get manageable ripple with compact inductors. Explanation: Example parameters: Vin 12 V, Vout 1.2 V, Iout 40 A, fSW 500 kHz → expected ripple current ≈ (Vout·(1−D))/(L·f) around the tens of amps range; confirm the part’s saturation and thermal limits under these conditions before production.
Alternatives, parallel/series strategies and footprint matching
Point: Paralleling can raise current capability but affects inductance. Evidence: Two identical inductors in parallel halve DCR (roughly) and double current capacity but also halve effective inductance. Explanation: To increase current without changing inductance, consider paralleling and then placing series small inductances, or choose a different part with higher Isat. Always verify mechanical footprint compatibility by matching pad dimensions and height profile against BOM mechanical constraints.
Procurement, verification and bench-test checklist (Actionable steps)
BOM entry & procurement notes
Point: A complete BOM line prevents procurement and assembly errors. Evidence: Include exact part number, inductance/tolerance, rated current, maximum DCR, package/footprint, datasheet revision and lifecycle notes. Explanation: Record the product datasheet revision identifier and local file path or repository entry; request minimum samples for validation—typically 10–20 pieces to cover electrical and thermal tests plus spares for destructive evaluation.
Recommended bench tests and pass/fail criteria
Point: Verify key datasheet claims with reproducible tests. Evidence: Required tests include inductance at target frequency, DCR at stable 25°C, Isat/Ipulse determination (measure L drop threshold), thermal-rise under rated current, and impedance/SRF sweep. Explanation: Suggested acceptance: L within datasheet tolerance at target frequency; DCR ≤ datasheet max ±10%; thermal rise <40°C above ambient at rated continuous current; Isat matching datasheet within test-method tolerance. Document test fixtures, DC bias method, and ambient conditions for traceability.
Summary
The official datasheet provides the core numbers you need—inductance, current ratings, DCR and package/thermal limits—to decide if the HPAL1V0630-R15-R suits a high-current switch-mode application. Use the datasheet’s curves for L(f) and IDC derating, verify footprint and thermal path on the PCB, and run the bench tests above before approving parts for production.
- Critical spec: 0.15 µH nominal with ±20% tolerance and continuous current rated around 40–46 A—confirm these from the datasheet for your revision.
- Loss and heat: compute Rloss = I²×DCR; at high currents this part can dissipate multiple watts—ensure vias and copper planes for cooling.
- Validation: capture L(f), impedance to SRF, DCR at 25°C, Isat/Ipulse and thermal-rise tests; accept values within datasheet tolerances and document test methods.
Frequently Asked Questions
What test should you run first when evaluating the 0.15µH inductor?
Start with a DCR measurement at a controlled 25°C, then measure inductance at your switching frequency under zero DC bias. These quick checks validate nominal loss and usable inductance before more time-consuming saturation or thermal tests.
How do you determine if the inductor will saturate in your buck converter?
Run an IDC vs. L sweep or apply a defined DC bias while measuring L drop. Use the datasheet’s Isat definition (for example, 10% L drop) and compare to your peak currents including ripple; if peak exceeds Isat, choose a higher Isat part or parallel devices.
Which bench-test criterion indicates a thermal fail for high-current operation?
If the inductor’s temperature rises more than ~40°C above ambient under continuous rated current (with PCB cooling as in final design), treat that as a fail. Reassess layout, add thermal vias or reduce current density to meet reliability targets.
How does the DCR shift with operating temperature, and how do you calculate it?
The DCR of the copper winding increases with temperature according to the temperature coefficient of copper (α ≈ 0.00393/°C). At an operating temperature of 100°C, the DCR will increase by approximately 29.5% from its 25°C baseline value, which must be factored into your thermal dissipation and efficiency models.
