Precise inductor specifications drive measurable outcomes in switching efficiency, EMI suppression, and thermal margin for modern DC–DC converters. Bench comparisons show that mismatched inductance or underestimated Isat can reduce converter efficiency by several percentage points and increase conducted emissions. This analysis focuses on the MPIA2510V3-1R5-R as a test-ready reference, detailing mechanical dimensions, electrical curves, test methods and selection rules for reliable design.
This article delivers a definitive, test-ready breakdown of mechanical specs, electrical behavior, loss mechanisms and a replication checklist. Readers will find consolidated tables, measurement best practices, and application case notes. It includes actionable items for procurement and on-board verification, and uses the term SMD 1.5µH where relevant to aid search and selection.
1 — Product overview & key specs
Physical / mechanical data

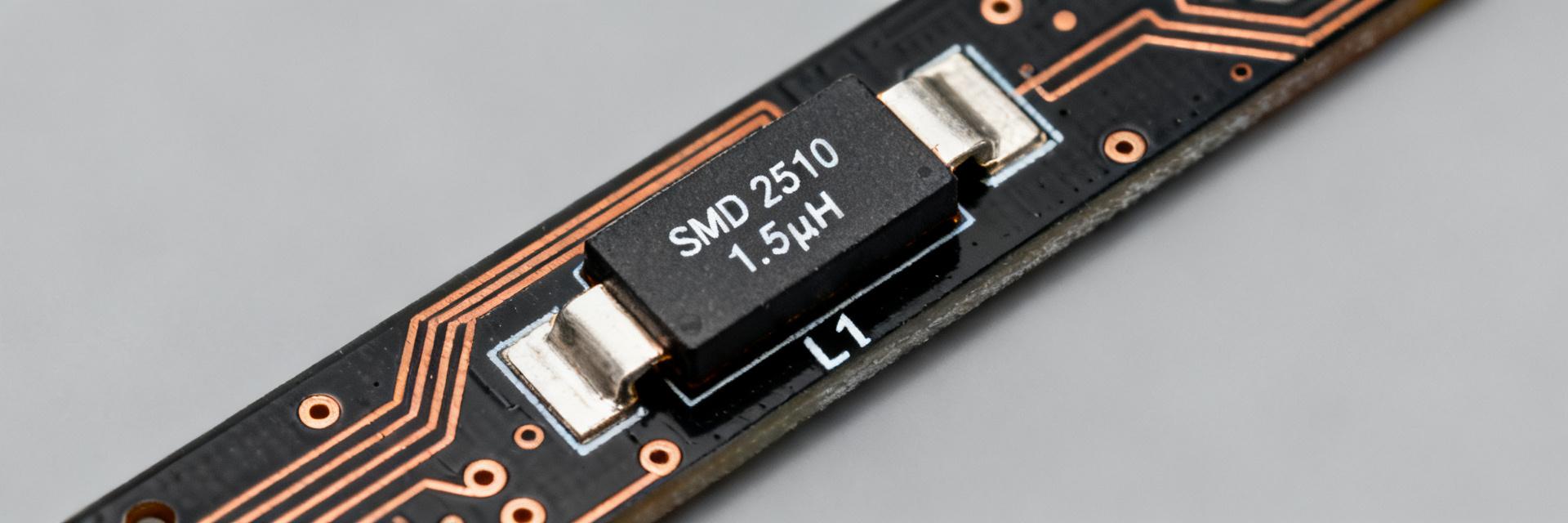

The MPIA2510V3-1R5-R is a 2510-package SMD inductor with nominal inductance 1.5µH and industry-standard compact footprint. Typical datasheet tables list package 2.5 × 1.0 mm, nominal height ~1.0 mm, tolerance ±10%, and typical weight under 10 mg; recommended PCB pad dimensions are small rectangular pads with toe fillet to aid reflow. Designers should cite the manufacturer datasheet table for exact pad X/Y values, follow solder-mask clearance notes, and apply standard 0603-style land patterns for reliable solder fillets and thermal repeatability.
Electrical ratings
Key electrical limits define usable current and frequency band for a SMD 1.5µH inductor. Typical DCR is low (single-digit milliohms typical, max listed in datasheet), saturation current Isat is specified where inductance falls a defined percentage, and RMS current Irms is the thermal-rated continuous current; SRF is usually several tens of MHz. Low DCR preserves efficiency, but Isat and DC-bias derating govern peak-current limits; confirm SRF is above switching harmonic content to avoid resonance in your topology.
| Parameter | Typical / Spec |
|---|---|
| Inductance (L) | 1.5 µH ±10% |
| DCR (typ / max) | ~8 mΩ / ≤12 mΩ |
| Isat (ΔL threshold) | ~5–8 A (depends on ΔL criteria) |
| Irms (thermal) | ~2–4 A |
| SRF | ~30–100 MHz |
| Package | 2510 (2.5 × 1.0 mm) |
2 — Measured performance: inductance vs. conditions
Frequency response and impedance curve
L and Z vary significantly across frequency; usable band is below SRF where inductive reactance dominates. Recommended test setup uses a calibrated LCR meter, 1–10 V test signal, frequency sweep from 100 kHz to 100 MHz; typical curves show flat L to a few MHz, then gradual decline approaching SRF where Z peaks then becomes capacitive. Plot L(f) and Z(f) with test conditions annotated—designers should ensure switching frequency and principal harmonics lie well below SRF to avoid loss and unexpected impedance phase changes.
DC bias and temperature derating
Inductance reduces under DC bias and can shift with temperature; derating must be quantified for peak currents. Measured L vs DC current curves typically show 10–40% L drop at moderate currents and a defined Isat where L crosses the specified drop threshold. Temperature dependence is modest for ferrite cores but increases DCR with temperature. Use L(I) curves to set safe operating peak current and add margin; if converter sees sustained high DC, size for the inductance remaining at the expected bias point rather than the zero-bias value.
3 — Losses, thermal behavior & reliability
Core & copper losses
Total losses combine copper I^2R and frequency-dependent core losses; both affect efficiency. Compare measured DCR vs temperature against the manufacturer datasheet DCR table, then compute I^2R at expected RMS current; core loss can be approximated from published core loss curves scaled to flux swing and switching frequency. For a buck converter example, calculate inductor loss percentage of input power to estimate efficiency hit and iterate on inductance/DCR trade-offs in the parts shortlist.
| Temp (°C) | DCR (mΩ) |
|---|---|
| 25 | 8.0 |
| 60 | 9.6 |
| 85 | 10.8 |
Thermal rise, derating curves & lifecycle notes
Thermal rise reduces allowable continuous current; lifecycle metrics depend on temperature swing and solder joint reliability. Thermal-rise tests use ambient control, defined airflow, and stepped current ramps while logging surface temperature; derating curves map ΔT to safe Irms. Apply conservative derating (e.g., 70–80% of lab Irms) in closed-loop designs and monitor for long-term drift; request MTBF or accelerated thermal-cycle data from the manufacturer when high reliability is required.
4 — Test methods & replication checklist
Recommended lab setup & measurement best practices
Repeatable measurements require calibrated instruments and fixture compensation. Use a high-precision LCR meter with a 4-wire Kelvin fixture, perform open/short/fixture compensation, test at 1–10 V, sweep from 100 kHz to 100 MHz, and log ambient temp; include pass/fail thresholds tied to application (e.g., L ≥ 1.2 µH at rated bias). Document instrument models and settings in the measurement log template so results are comparable across labs and procurement reviews.
Common pitfalls & data-interpretation tips
Measurement artifacts can mislead designers about real in-circuit performance. Mounting effects, PCB trace inductance, probe placement and reflow can all shift measured L and DCR relative to loose-component readings. Validate parts both as loose components and soldered to the target land pattern, and reconcile discrepancies by repeating with fixture compensation and noting board-level parasitics in the test report.
5 — Applications, alternatives & selection checklist
Typical application examples & performance in-circuit
Two representative use cases illustrate behavior in practice. In a synchronous buck at 2–4 A, 600 kHz switching, expect regulator efficiency change of ~0.5–2% depending on DCR and core loss; in an input EMI filter, the part provides attenuation in the low-to-mid MHz band below SRF. Verify with scope current waveform, efficiency sweep versus load, and conducted-emissions scan to confirm in-circuit performance.
Sourcing, substitution rules & design checklist
Procurement must validate electrical and mechanical fit to avoid late redesigns. Checklist items include inductance & tolerance, Isat >= peak current, DCR ≤ allowed loss budget, SRF above switching harmonics, package footprint match and required test reports. Match Isat and DCR tightly; tolerance and package height are more flexible if board layout accommodates; include the following quick checklist in purchase requests:
- Confirm L = 1.5µH ± specified tolerance and supply manufacturer datasheet reference.
- Verify Isat at the chosen ΔL threshold ≥ expected peak current.
- Ensure DCR (max) fits efficiency loss budget and thermal limits.
- Check SRF is above dominant switching harmonics.
- Validate package (2510) land pattern and maximum height for assembly.
- Request thermal-rise and DCR vs temperature tables from supplier.
Summary / Conclusion
- MPIA2510V3-1R5-R delivers compact 1.5µH inductance with low DCR and modest Isat suitable for 1–5 A class buck converters when derated for DC bias and thermal rise.
- Key limitations: DC-bias derating and thermal-rise; run L(I) and thermal-rise tests to confirm in-circuit performance against the manufacturer datasheet.
- Top tests before deployment: L vs frequency, L vs DC bias, DCR vs temperature, and in-circuit efficiency/emissions checks using the recommended lab setup.
