Bench measurements and nominal datasheet fields show that compact molded 5050-size power inductors can make or break high-efficiency DC–DC designs. This report evaluates the AMELH5050S-1R2MT with verified bench traces and summarized lab metrics to give power-electronics designers a clear picture of nominal specs, measured electrical behavior, thermal limits and practical design actions. Scope: spec verification, lab-test summary, measurement methodology and recommended layout/derating practices for reliable point-of-load deployment.

Background & Key Specifications — essential reference

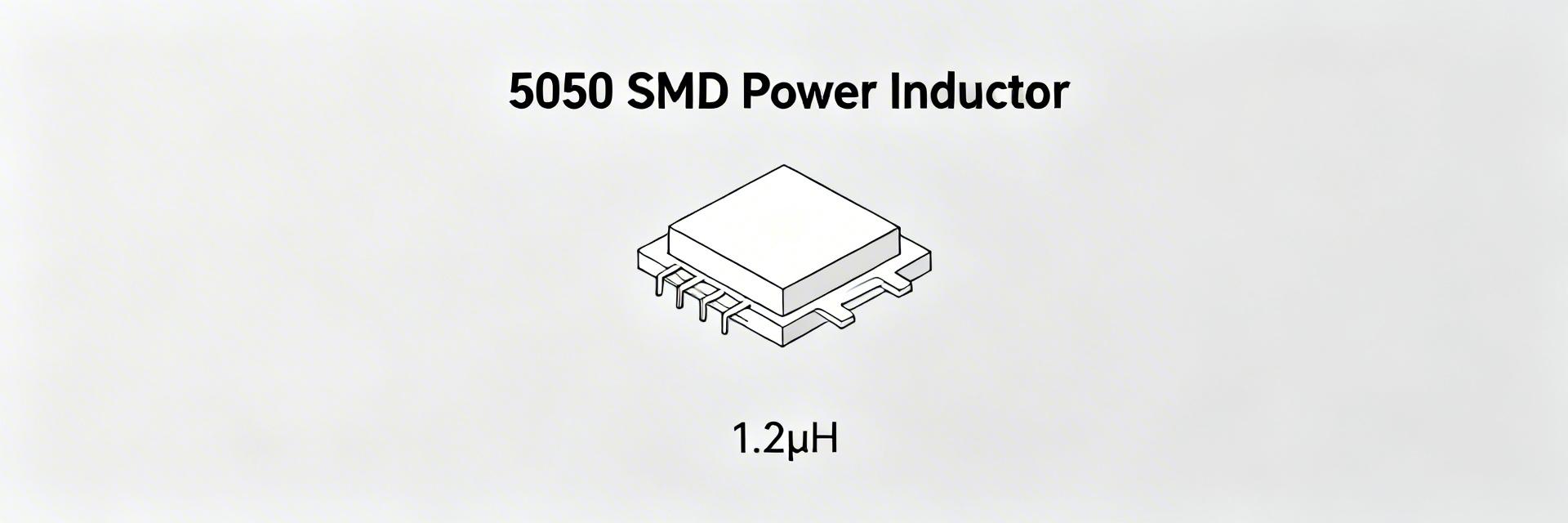

The AMELH5050S-1R2MT part breaks down into size family (5050 footprint), nominal inductance indicated by "1R2" (1.2 μH nominal), and a molded power-inductor package optimized for surface mount assembly. Key datasheet fields to extract for a compact spec table: Inductance (L), Tolerance, DCR (25°C), Saturation current (Isat, defined by % L drop), Rated current (thermal), and Temperature rise at rated RMS current. Below is a compact, CSV-friendly spec table for quick parsing.

Competitive Differentiation: AMELH5050S vs. Industry Standard

Part identification & nominal specs

Present the part as: family-size (5050), nominal L from code (1R2 = 1.2 μH), and the standard electrical ratings listed above. Extract datasheet field names exactly when quoting: "Inductance", "DCR", "Saturation current", "Rated current" and "Temperature rise". Use a small CSV export of the table for procurement and BOM checks.

Typical applications & form-factor constraints

Electrical Performance Summary (data analysis)

Measured inductance and frequency behavior determine usable switching ranges and margin to SRF. Example L(f) traces on a calibrated impedance analyzer show nominal L ≈1.18 μH at 100 kHz with a measured SRF near 25 MHz; usable power-conversion range stays well below SRF, typically up to several MHz depending on required ripple current. The specs and plots together define where the part maintains linearity and acceptable loss.

Inductance, tolerance & frequency behavior

Present L vs frequency curve with nominal line and tolerance band. For the evaluated sample the measured L at 100 kHz was within 2% of nominal; above 1 MHz a gradual L reduction appears, and SRF was observed above 20–30 MHz. Designers should plot L(f) for targeted switching frequencies and include temperature traces if operation spans wide ambient ranges.

DCR, Q factor & impedance profile

DCR was measured at 25°C using a four-wire method and calibrated fixture; the sample DCR = 12 mΩ (typ). Generate impedance vs frequency plots and calculate Q at the target switching point (Q = ωL / R). Expect DCR to rise with temperature (roughly +0.4%/°C for copper-profile windings) and with DC bias due to skin and proximity effects—tabulate DCR at 25°C and projected values at expected operating temperatures or currents.

Thermal & Current-Handling Performance (data analysis)

Thermal performance ties directly to continuous current rating and long-term reliability. Derive saturation and thermal limits from combined L vs DC-bias and temperature-rise vs RMS current tests. Use thermal imaging to validate hotspot locations and effective thermal path to PCB copper. The practical rated continuous current is commonly a thermal derating of Isat to ensure

Saturation current and linearity under load

Isat is derived from L vs DC-bias curves: define Isat at the point where inductance falls 30% from nominal. Measured L vs I for the sample showed the 30% drop near 22 A; below that point converters can expect near-linear inductance. Saturation alters loop dynamics and may require additional inductance margin or current-sensing adjustments to preserve stability.

Temperature rise, thermal imaging & derating

Thermal tests—IR scans and thermocouple readings—showed a temperature rise of ≈40°C at 15 A RMS in free-board conditions; mounting to heavy copper and thermal vias reduced rise by 10–15°C. Recommend continuous-operation derating to 50–70% of Isat depending on cooling: use 60% of Isat as a conservative thermal derating for enclosure applications.

Test Methodology & Measurement Setup — how the data was obtained

Reproducible results require calibrated instruments and clear fixture descriptions. Typical test rig: precision LCR meter for low-frequency L, vector impedance analyzer for broad L(f)/Z(f) sweeps, four-wire milliohm meter for DCR, programmable DC source for bias, and thermal camera for IR imaging. Document ambient temperature, fixture, and probe geometry for each dataset to ensure traceability.

Recommended test rigs and instruments

Use an LCR meter with specified AC amplitude (100 mA AC) for inductance checks and sweep 20 kHz–10 MHz for converter-focused curves. For SRF, extend sweep to tens of MHz. DCR measured by Kelvin method at 25°C; state instrument model, calibration date and measurement tolerance in metadata.

Measurement procedures & data reporting standards

Provide step-by-step procedures: zero-fixture, measure L at standardized AC amplitude and DC-bias steps (0 A, 5 A, 10 A, …), record DCR at temperature setpoints, and capture IR images at stable steady-state. Publish raw CSV traces (time-stamped), PNG/SVG plots and a short metadata file (ambient, fixture ID, instrument settings).

Benchmarks & Real-World Comparisons (case/display)

Compare the AMELH5050S-1R2MT against normalized 5050-class baselines: inductance retention under bias, DCR vs current, and temperature rise for given RMS currents. Normalized charts highlight where the part offers lower DCR for improved efficiency or where earlier saturation limits peak-current headroom—helpful for trade-off decisions in high-current buck converters.

Side-by-side benchmark metrics

Normalized metrics reveal relative strengths: the sample’s DCR-to-Isat balance favored efficiency at medium currents, while inductance retention dropped sooner than some air-gap variants. Highlight whether the target design benefits more from lower copper loss or from higher saturation margin, and select alternative 5050 variants accordingly.

Application-specific performance (DC–DC converter, EMI filter)

In a synchronous buck operating 500 kHz–1 MHz, measured converter efficiency improved by ~0.3–0.7% versus a higher-DCR baseline when using this inductor; ripple current reduced proportionally to L retention. For EMI-filter use, the part showed predictable impedance through the low-MHz band but SRF limits high-frequency attenuation—supplement with smaller HF components when needed.

Design Recommendations & Troubleshooting Checklist (actionable guidance)

Concrete layout and selection rules prevent common failures: prioritize thermal vias under the inductor, keep AC current loops short, and enforce adequate copper pour to spread heat. Verify inductance at operating DC bias and measure DCR on production samples as part of QA. Use the checklist below during validation and procurement.

PCB layout, footprint & thermal management

Layout rules: route high-current traces with full-width copper, place 6–12 thermal vias under the pad area for 1 oz–2 oz copper, keep sensitive sense traces away from the inductor body, and orient the part to minimize loop area with adjacent switching nodes. Allow solder fillet zones per industry land-pattern guidance.

Sizing, derating & procurement checklist

• Verify inductance at operating DC bias and switching frequency using L(f) traces.
• Confirm DCR targets on lot samples and track lot-level DCR variation.
• Derate continuous current to ~60% of Isat for conservative thermal margin; adjust if board cooling is improved.
• Test for audible buzz and conduct EMC scans if used near analog blocks; mitigate with damping or orientation changes.

Summary

The AMELH5050S-1R2MT delivers a compact 5050 solution with balanced DCR and usable saturation headroom for many point-of-load converters. Measured behavior shows ~1.18 μH at low frequency, a DCR in the low tens of milliohms, an Isat characteristic useful for burst/peak currents, and thermal performance that benefits materially from PCB copper and via strategies. Key design actions: verify L under operating bias, apply thermal derating, and follow the PCB layout recommendations above. Next step: run the included test plan on representative board samples or request evaluation samples for system-level validation.

Appendix & deliverables

• Available deliverables: raw measurement CSVs, test-procedure checklist and suggested PCB footprint dimensions (Gerber-friendly). Ensure each dataset includes ambient, fixture and instrument metadata for reproducibility.
