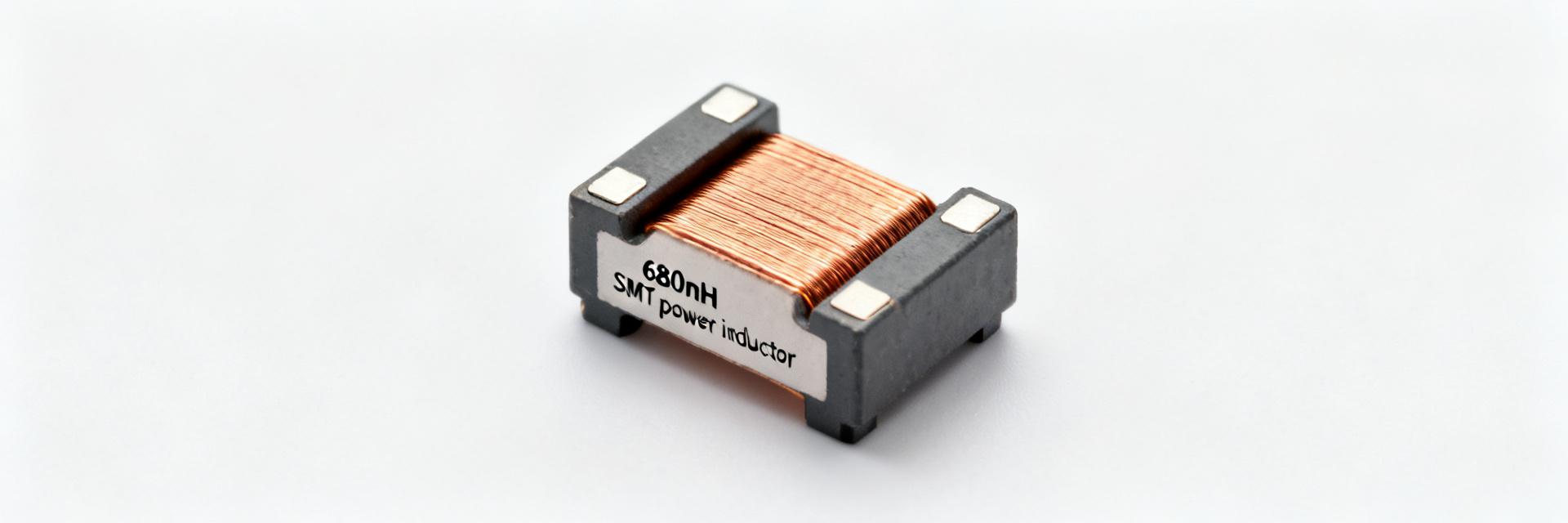

Point: The HPAL1V1040-R68-R is a 680 nH shielded molded SMT inductor with a high continuous current rating and low DC resistance, making it relevant for compact, high-current designs. Evidence: Datasheet key values include 680 nH inductance (test at 100 kHz), ~23 A rated current, max DCR ~2.4 mΩ and an approximate SRF near 63 MHz. Explanation: These headline numbers frame trade-offs between conduction loss, saturation behavior and footprint when selecting a power inductor.
Point: Power designers, layout engineers and procurement should focus on DCR, thermal rise and real‑world test methods. Evidence: DCR sets I^2R conduction loss, while saturation and thermal derating determine usable current under target ambient and PCB constraints. Explanation: The remainder of this article breaks out quick specs, DCR interpretation, thermal handling, test checklists and selection trade-offs to guide validation on target PCBs.
1 — Part overview & quick specs (background)
1.1 Quick-spec snapshot to include in article
Point: Presenting single-line annotated specs helps rapid selection. Evidence: Key annotated values — Inductance: 680 nH (100 kHz test); Rated current: ~23 A (thermal/rms rating); DCR (max): 2.4 mΩ; SRF: ~63 MHz; Test frequency: 100 kHz; Operating temp: -55°C to +125°C; Package: compact SMT molded shield. Explanation: These fields show electrical limits, thermal bounds and mechanical envelope; include HPAL1V1040-R68-R once when labeling the snapshot for clarity.
| Parameter | Value | Notes |
|---|---|---|
| Inductance (L) | 680 nH | Measured at 100 kHz; frequency-dependent |
| Rated current | ~23 A | Manufacturer rating; observe derating rules |
| DCR (max) | ~2.4 mΩ | Spec is max; affects I²R loss |
| SRF | ~63 MHz | Above SRF inductance collapses |
| Temp range | -55°C to +125°C | Operational limits |
| Package | Shielded molded SMT | Compact footprint, low EMI |
1.2 Typical applications and where this part fits
Point: This type of inductor is aimed at high-current DC–DC converter rails. Evidence: Use cases include synchronous buck outputs, point‑of‑load regulators and high‑current input/output filters where low conduction loss and small footprint are priorities. Explanation: Choose this value when switching frequency and required ripple call for ~680 nH and when the DCR vs. current trade-off aligns with efficiency targets.
2 — Electrical characteristics & DCR deep dive (data analysis)
2.1 Reading and interpreting DCR on the datasheet
Point: DCR is specified as a maximum to bound conduction loss across production tolerances. Evidence: With a max DCR of ~2.4 mΩ, conduction loss scales as P_loss = I_rms² × DCR; e.g., at 20 A RMS, P_loss ≈ 20² × 0.0024 = 0.96 W. Explanation: Designers must use RMS current for loss estimates, add margin for measurement tolerance, and remember peak currents in switching converters can exceed RMS and induce extra heating.
2.2 Frequency behavior: inductance vs. frequency and SRF implications
Point: Inductance decreases with frequency and loses inductive behavior past SRF. Evidence: The test inductance is quoted at 100 kHz; as frequency rises toward tens of MHz inductance will fall and near the SRF (~63 MHz) the part becomes capacitive. Explanation: For EMI and loop‑stability checks, consult L(f) curves where provided, ensure switching harmonics remain below SRF, and account for reduced impedance at high frequencies when designing filters.
3 — Thermal behavior, saturation & current handling (data analysis / methods)
3.1 Saturation current, temperature derating and reading curves
Point: Saturation current and rated current differ; designers must derate for temperature and PCB conditions. Evidence: Datasheet curves typically show inductance vs. DC bias and temperature; use a conservative margin (e.g., 10–20%) from rated current for sustained operation at elevated ambient. Explanation: Apply derating rules based on the provided curves: select an operating current below the knee of the L vs. I curve to avoid excessive inductance drop under load and to limit thermal stress.
3.2 Thermal rise, PCB layout impact and airflow considerations
Point: DCR losses convert to heat that must be removed by PCB copper and airflow. Evidence: Thermal rise depends on DCR×I², copper area/thickness, thermal vias and nearby heat sources; lack of adequate copper can raise part temp beyond datasheet limits. Explanation: Reduce temperature rise by increasing pad copper, adding thermal vias under the part, providing clearance from hot components, and considering forced airflow or chassis conduction paths for high-RMS applications.
4 — Design & test guidelines (method/guides)
4.1 Calculating losses, efficiency and selecting the right value
Point: Quantify conduction loss then assess impact on converter efficiency. Evidence: For a 1.2 V, 20 A rail (24 W output) with 0.96 W inductor loss, idealized efficiency contribution is ~24 / (24 + 0.96) ≈ 96.1%, ignoring other losses. Explanation: Use this calculation to compare alternate inductances: lower L reduces ripple but may need lower DCR to keep conduction loss acceptable; trade off ripple current, switching frequency and core size when selecting the final value.
4.2 Bench testing checklist: validating DCR, temp rise and SRF
Point: Verify datasheet claims on the target PCB with focused tests. Evidence: Recommended checks include four‑wire DCR with Kelvin fixture, thermal imaging under steady RMS load, inductance vs. frequency sweep to locate SRF, and peak current saturation tests. Explanation: Use fixtures that minimize contact resistance, record RMS and peak currents separately, capture PCB temperature rise with infrared camera, and document pass/fail thresholds for procurement and qualification.
5 — Selection trade-offs, alternatives & procurement notes (case study / action)
5.1 Spec trade-offs: DCR vs. current rating vs. size
Point: Lower DCR typically requires more copper or larger core, impacting size. Evidence: A design constraint that prioritizes lowest conduction loss may force a larger package or different material; conversely, strict height/volume limits may accept higher DCR and slightly lower efficiency. Explanation: Follow a decision flow: prioritize required continuous current, set acceptable DCR loss budget, then constrain volume/height and EMI mitigation to select candidate parts.
5.2 Long-tail keyword & content opportunities for procurement and design teams
Point: Documentation and validation assets improve procurement confidence and SEO for internal pages. Evidence: Useful content includes a DCR measurement procedure, a thermal derating chart derived from lab data, and a buck converter application example with measured loss figures. Explanation: Provide clear cross‑references to datasheet figures, attach measured curves from qualification runs, and label assets with concise phrases that mirror buyer search intent (e.g., "DCR measurement procedure" and "thermal derating chart").
Summary
- The HPAL1V1040-R68-R is a 680 nH shielded SMT inductor with ~2.4 mΩ max DCR and ~23 A rating; these specs prioritize low conduction loss for high‑current rails and require PCB validation to confirm thermal performance and saturation margins.
- Key design checks are four‑wire DCR measurement, inductance vs. frequency sweep (to locate SRF), and thermal imaging under RMS load; document derating and clearance rules for repeatable results.
- Selecting this inductor means balancing DCR, required ripple current and package constraints: prioritize current rating first, then DCR budget, then size and EMI mitigation in that order.
Common questions
How should I measure the DCR for this part?
Point: Use a four‑wire (Kelvin) method to avoid fixture resistance errors. Evidence: Measure at low DC current to avoid heating and run a separate high‑current test to record temperature rise; subtract fixture offsets and report the averaged value. Explanation: Document temperature during the measurement and correct readings to a reference temperature if you compare to datasheet max DCR, and include tolerance bands for production sampling.
What thermal derating should I apply for continuous operation?
Point: Apply conservative derating when ambient or PCB cooling is limited. Evidence: A common rule is to operate below 80–90% of the rated current for continuous duty in constrained cooling, and reduce further at elevated ambient temperatures. Explanation: Use measured thermal rise on your PCB to build a derating curve, then specify maximum continuous RMS current at expected ambient for reliable long‑term operation.
How do I validate SRF and frequency behavior in the lab?
Point: Sweep inductance across frequency to identify the point where inductance collapses and impedance falls. Evidence: Use an LCR meter or VNA to capture L(f) and magnitude/phase, then compare to expected SRF near the quoted value; perform the sweep under representative bias if possible. Explanation: Confirm SRF is well above switching harmonics for your design, or account for reduced impedance in EMI/filter design if SRF is close to switching-related frequencies.
What is the difference between saturation current (Isat) and temperature rise current (Irms) for the HPAL1V1040-R68-R?
Point: Saturation current specifies the DC limit based on inductance drop, while Irms is bounded by temperature rise. Evidence: For HPAL1V1040-R68-R, Isat is the point where initial inductance drops by a specific percentage (typically 20% or 30%), while the ~23 A rating is based on a 40°C thermal rise. Explanation: Designers must verify both parameters independently; at high operating temperatures, the thermal limit (Irms) often becomes more critical, whereas transient peaks are constrained by Isat.
