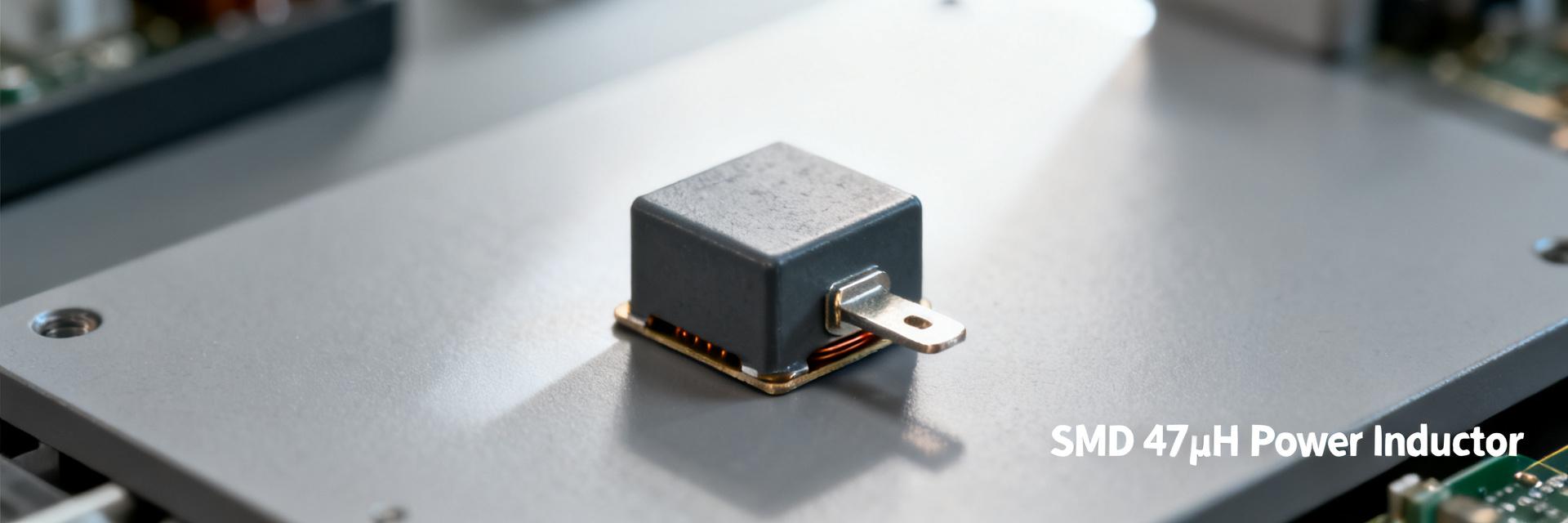

Introduction: This data-driven brief focuses on the HCM1A1104V3-470-R power inductor and the laboratory verifications designers should run before production approval. Presented here are the critical nominal figures—47 µH (±20%), Irms ≈ 2.7 A, Isat ≈ 3.6 A, SRF ≈ 3.9 MHz, operating range −55°C to +155°C—and the test procedures that confirm those values for converter and automotive applications.
Point: Designers need a short checklist of what to verify. Evidence: The device is specified for power-rail use with automotive-grade temperature ratings and FLL test conditions commonly at 100 kHz, 0.25 Vrms, +25°C. Explanation: The following sections translate datasheet claims into measurable bench procedures and interpretation guidance for acceptance or reprobe.
HCM1A1104V3-470-R Overview & Key Specs
1.1 At-a-Glance Spec Table
Point: A single-table snapshot reduces ambiguity during procurement and test planning. Evidence: Below are the essential parameters and typical test conditions to record on lab reports. Explanation: Report units and fixture/test conditions explicitly to make measured results comparable to the nominal values.
| Parameter | Typical / Note |
|---|---|
| Inductance | 47 µH ±20% (FLL, 100 kHz, 0.25 Vrms, +25°C) |
| DCR | Typical <0.5 Ω (measure at +25°C; report fixture contribution) |
| Irms rating | ≈ 2.7 A (thermal-rise-based rating) |
| Isat (L drop) | ≈ 3.6 A (specified drop point, e.g., 10–20% inductance reduction) |
| SRF | ≈ 3.9 MHz (free-air, measured with network analyzer) |
| Operating temp | −55°C to +155°C (automotive grade / AEC-Q200 note) |
| Core material | High-permeability ferrite (SMD power inductor class) |
| Package type | SMD power package; check footprint and height limits |
1.2 Typical Applications and Suitability
Point: Understand where the device fits in a BOM. Evidence: The combination of moderate inductance and automotive-temperature rating suits buck converters, DC–DC modules, and power-rail filtering in vehicle electronics. Explanation: Selection drivers are current handling (Irms/Isat), SRF for switching frequency compatibility, and thermal stability under board-level dissipation.
Electrical Characteristics Explained
2.1 Inductance vs Frequency and FLL Test Context
Point: Inductance is frequency-dependent and FLL test context defines the nominal. Evidence: FLL values are normally measured at 100 kHz, 0.25 Vrms, and +25°C; at higher switching frequencies effective inductance will fall due to core permeability roll-off. Explanation: For loop compensation and ripple calculations use the inductance at the converter switching frequency or characterize the frequency response up to several MHz.
2.2 Self‑Resonant Frequency (SRF) and Parasitics
Point: SRF limits usable high-frequency operation. Evidence: An SRF near 3.9 MHz indicates the part begins to show capacitive behavior above that point, driven by parasitic winding capacitance and layout capacitances. Explanation: If switching frequency or harmonics approach SRF, expect reduced inductive impedance, higher EMI, and possible control-loop interactions; minimize parasitic capacitance in layout to preserve effective SRF.
Current Ratings, Saturation, and Thermal Performance
3.1 Saturation Current (Isat): Definition and Measurement
Point: Isat defines the onset of significant inductance loss under DC bias. Evidence: Isat is commonly defined as the DC current producing a specified inductance drop (e.g., 10–20%). Typical Isat ≈ 3.6 A for this part. Explanation: Verify Isat with a controlled DC ramp and L-measurement; ensure peak currents in the converter remain below Isat margin to avoid excessive ripple or loss of regulation.
3.2 RMS Current (Irms), Temperature Rise, and Derating
Point: Irms rating governs continuous thermal limits. Evidence: Irms ≈ 2.7 A corresponds to a specified temperature-rise test (often ΔT ≈ 30°C at rated Irms with defined PCB conditions). Explanation: Apply a derating rule-of-thumb—reduce ambient-rated Irms by 20–30% for constrained PCB copper or poor airflow; measure actual ΔT with thermal imaging or thermocouple at pads to validate continuous operation.
HCM1A1104V3-470-R Test Procedures for Labs
4.1 Bench Setup for Inductance, DCR and SRF
Point: Repeatable fixtures and meter settings are essential. Evidence: Mount the SMD on a short test PCB or low‑inductance fixture, null out fixture inductance, use LCR meter at 100 kHz/0.25 Vrms for FLL, and use a low‑frequency four‑wire DCR meter at +25°C. Sweep with a network analyzer to locate SRF. Explanation: Document ambient temperature, fixture details, instrument model and calibration state on each test report so datasheet comparison is meaningful.
4.2 Stress Tests for Isat and Thermal Behavior
Point: Combine pulsed and steady tests to map performance. Evidence: Use pulsed current tests to identify Isat (short pulse with L measurement) and run DC/AC thermal‑rise tests to measure Irms limits, placing thermocouples on the package and adjacent PCB to capture realistic temperatures. Explanation: Define pass/fail (e.g., L drop beyond spec or Tcase > rated) and run repeatability samples across several units to account for manufacturing variance.
Representative Test Data & Interpretation
5.1 Example Measurement Results and Expected Ranges
Point: A concise results block speeds decision-making. Evidence: Example measured block: L@100 kHz = 46–50 µH, DCR = 0.20–0.50 Ω, SRF = 3.5–4.2 MHz, Isat observed 3.4–3.8 A (10% L drop), Irms thermal-rise test passed at 2.6–2.8 A for ΔT ≈30°C on a 2‑layer reference PCB. Explanation: Deviations beyond tolerance suggest either lot variation, measurement-fixture error, or inappropriate PCB thermal layout; re-evaluate with tightened fixturing and repeat samples if values sit near limits.
5.2 Common Failure Modes and Diagnostic Tips
Point: Anticipate root causes for out-of-spec results. Evidence: Typical failures include core saturation during transients, excessive temp rise from elevated DCR or poor copper thermal path, and solder joint fatigue in high‑vibration environments. Explanation: Reproduce issues with controlled transient waveforms, swap to larger copper areas or thermal vias, and do mechanical stress tests if solder fatigue is suspected.
Selection Checklist and PCB Design Tips for Power Inductors
6.1 How to Choose an Equivalent or Alternative
Point: A short checklist prevents mis‑selection. Evidence: Match inductance, DCR, Isat, Irms, SRF, package size, and temperature rating; prefer a higher Isat or Irms margin for pulsed loads. Explanation: When substituting, tighten tolerance or increase current margin rather than accepting a lower DCR at the expense of saturation behavior.
6.2 PCB Layout and Thermal Management Best Practices
Point: Layout often determines real-world performance. Evidence: Minimize switch loop area, place the inductor close to the diode/FET/capacitor cluster, use thermal vias under or beside the pads to spread heat, and specify generous solder fillets to reduce joint fatigue. Explanation: These measures reduce EMI, improve thermal dissipation, and help the part meet datasheet Irms aging expectations on production boards.
Summary
- Confirm critical numbers from the manufacturer datasheet and lab: 47 µH (±20%), Isat ≈ 3.6 A, Irms ≈ 2.7 A, SRF ≈ 3.9 MHz, and −55°C to +155°C ratings; validate with the FLL and thermal tests described above.
- Use the bench procedures for inductance, DCR, SRF, pulsed Isat, and thermal‑rise Irms to create objective pass/fail criteria before production sign‑off.
- Adopt PCB layout and thermal via strategies to protect current margins and prevent solder/joint failures in automotive or high‑vibration applications.
Frequently Asked Questions
What is the saturation current (Isat) for the HCM1A1104V3-470-R and how is it measured?
Isat is the DC current level at which inductance falls by a specified percentage (commonly 10–20%). Measure by applying a controlled DC bias while monitoring inductance with an LCR meter; the current at the defined L drop is recorded as Isat. Use short pulses if heating would otherwise bias results.
How should Irms be validated for continuous operation?
Validate Irms with a thermal‑rise test: apply the rated RMS current in steady state on a representative PCB, measure the temperature rise (ΔT) at the inductor body and adjacent copper, and compare to the allowed ΔT in the datasheet. Derate for limited copper or elevated ambient.
Why does SRF matter for switching converters and what if my switching frequency approaches SRF?
SRF is where the inductor’s impedance becomes capacitive due to parasitics; if switching frequency approaches SRF the device no longer behaves as an inductor, degrading filtering and potentially upsetting control loops. If your switching frequency is near SRF, choose an inductor with higher SRF or rework layout to reduce parasitic capacitance.
What are the recommended PCB layout practices to ensure thermal performance?
To achieve datasheet Irms targets, minimize switch loop area, position the component immediately adjacent to switching nodes, employ strategic thermal vias beside the pads, and specify robust copper weights combined with optimized solder fillets to prevent structural fatigue.
